Quadro Suspended QU4268-30-SDS
Available for surface mounted, or suspended application – down, symmetric light effect.
Luminaire body from an extruded aluminum profile; no visible screws; designed for either individual lights or continuous lighting systems; surface color in silver or powder-coated in white; surface mounted or suspended luminaire with 1500mm cable suspension; with integrated tool-less suspension height adjustment; incl. transparent 1500mm power feed cable; High-Performance Opal cover (HPO) for uniform illumination; or Micro Prismatic Polycarbonate diffuser for low glare; energy-efficient LEDs with very good color rendering; available in the light colors 3000K and 4000K; CRI ≥ 90; the LEDs lifetime 50000 hours; the degree of protection IP 20; optional electronic transformer, on/off, 1-10V dimmable or DALI control.
Specification
Model Number |
QU4268-30-SDS |
System Power |
L1146mm: 35W-3000K-2640lm/ 4000K-2800lm L1496mm: 45W-3000K-3420lm/ 4000K-3600lm |
Optic Cover |
High-Performance Opal/ Micro Prismatic Cover/ Continuous High-Performance Opal Cover |

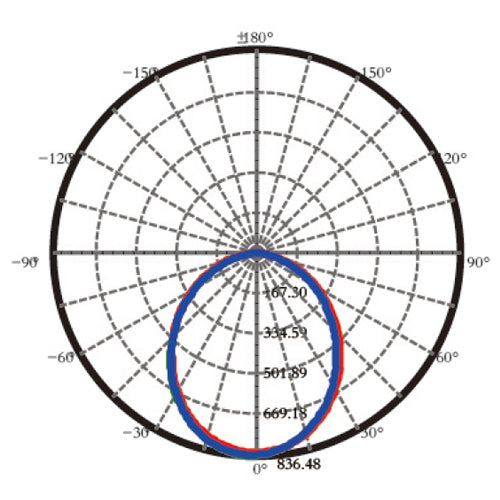

Light Distribution | Down-Symmetric |
CRI |
90 |
Electronic Transformer |
O-OnOff/ DIM1-1~10V/ DIM2-DALI |
Surface color |
Silver/ White/ Black |
Dimension |
W42 mm*H70 mm*L1146 mm/ (L1496mm or Customized Length) |
