Quadro Suspended QU5870E-80-SDA
Available for surface mounted, or suspended application – down, and asymmetric light effect.
Luminaire body from an extruded aluminum profile; no visible screws; designed for either individual lights or continuous lighting systems; surface color in silver or powder-coated in white; surface mounted or suspended luminaire with 1500mm cable suspension; with integrated tool-less suspension height adjustment; incl. transparent 1500mm power feed cable; High-Performance Opal cover for uniform illumination; energy-efficient LEDs with very good color rendering; available in the light colors 3000K and 4000K; CRI ≥ 90; the LEDs lifetime 50000 hours; the degree of protection IP 20; optional electronic transformer, on/off, 1-10V dimmable or DALI control.
Specification
Model Number |
QU5870E-80-SDA |
System Power |
L992mm: 80W-3000K-5390lm/ 4000K-5680lm L1482mm: 120W-3000K-8095lm/ 4000K-8520lm |
Optic Cover | High-Performance Opal Cover |

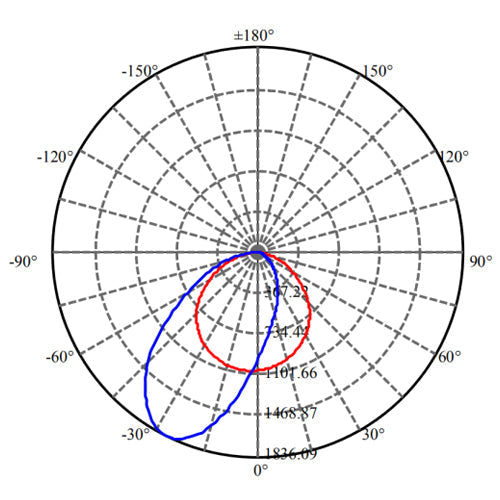

Light Distribution |
Down-Asymmetric |
CRI |
90 |
Electronic Transformer |
O-OnOff/ DIM1-1~10V/ DIM2-DALI |
Surface color | Silver/ White/ Black |
Dimension |
W58 mm*H70 mm*L992 mm/ (L1482mm or Customized Length) |
