Quadro Suspended QU4285-30-SDS
Available for surface mounted, or suspended application – down, symmetric light effect.
Luminaire body from an extruded aluminum profile; no visible screws; designed for either individual lights or continuous lighting systems; surface color in silver or powder-coated in white; surface mounted or suspended luminaire with 1500mm cable suspension; with integrated tool-less suspension height adjustment; incl. transparent 1500mm power feed cable; High-Performance Opal cover for uniform illumination; energy-efficient LEDs with very good color rendering; available in the light colors 3000K and 4000K; CRI ≥ 90; the LEDs lifetime 50000 hours; the degree of protection IP 20; optional electronic transformer, on/off, 1-10V dimmable or DALI control.
Specification
Model Number |
QU4285-30-SDS |
System Power |
L1134mm: 35W-3000K-2190lm/ 4000K-2310lm L1484mm: 45W-3000K-2820lm/ 4000K-2970lm |
Optic Cover | High-Performance Opal Cover |

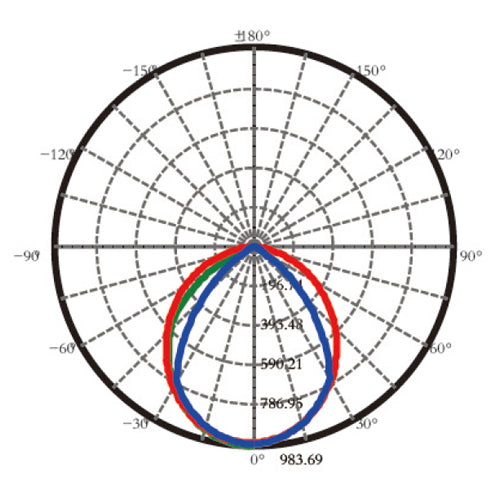

Light Distribution | Down-Symmetric |
CRI |
90 |
Electronic Transformer |
O-OnOff/ DIM1-1~10V/ DIM2-DALI |
Surface color |
Silver/ White/ Black |
Dimension |
W42 mm*H85 mm*L1134 mm (L1484mm or Customized Length) |
