Quadro Suspended QU4268-40G-SDS
Available for surface mounted, or suspended application – down, symmetric light effect.
Luminaire body from an extruded aluminum profile; no visible screws; designed for either individual lights or continuous lighting systems; surface color in silver or powder-coated in white; surface mounted or suspended luminaire with 1500mm cable suspension; with integrated tool-less suspension height adjustment; incl. transparent 1500mm power feed cable; Dark Light Louver for uniform illumination and low glare control; energy-efficient LEDs with very good color rendering; available in the light colors 3000K and 4000K; CRI ≥ 90; the LEDs lifetime 50000 hours; the degree of protection IP 20; optional electronic transformer, on/off, 1-10V dimmable or DALI control.
Specification
Model Number |
QU4268-40G-SDS |
System Power |
L1070mm: 42W-3000K-2950lm/ 4000K-3150lm L1468mm: 58W-3000K-4130lm/ 4000K-4350lm |
Optic Cover | Dark Light Louver |

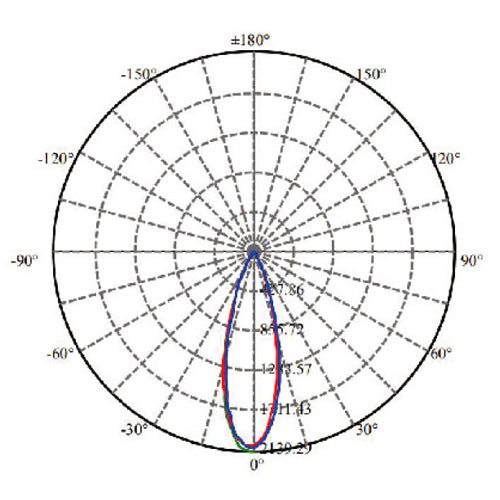

Light Distribution | Down-Symmetric |
CRI |
90 |
Electronic Transformer |
O-OnOff/ DIM1-1~10V/ DIM2-DALI |
Surface color |
Silver/ White/ Black |
Dimension |
W42 mm*H70 mm*L1070 mm/ (L1468mm or Customized Length) |
