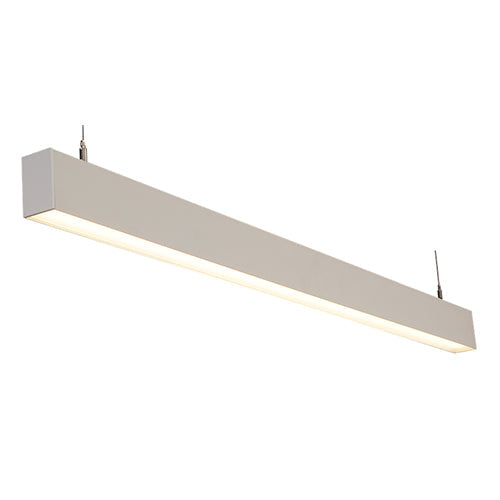

Quadro Suspended QU4268-40-SUD
Available for suspended application – down-up, and symmetric light effect.
Luminaire body from an extruded aluminum profile; no visible screws; designed for either individual lights or continuous lighting systems; surface color in silver or powder-coated in white; surface mounted or suspended luminaire with 1500mm cable suspension; with integrated tool-less suspension height adjustment; incl. transparent 1500mm power feed cable; High-Performance Opal cover (HPO) for uniform illumination; or Micro Prismatic Polycarbonate diffuser for low glare; energy-efficient LEDs with very good color rendering; available in the light colors 3000K and 4000K; CRI ≥ 90; the LEDs lifetime 50000 hours; the degree of protection IP 20; optional electronic transformer, on/off, 1-10V dimmable or DALI control.
Specification
Model Number |
QU4268-40-SUD |
Syetem Power |
L1146mm: 46W-3000K-3520lm/ 4000K-3726lm L1496mm: 46W-3000K-4620lm/ 4000K-4860lm |
Optic Cover |
High-Performance Opal/Micro Prismatic Cover/ Continuous High-Performance Opal Cover |

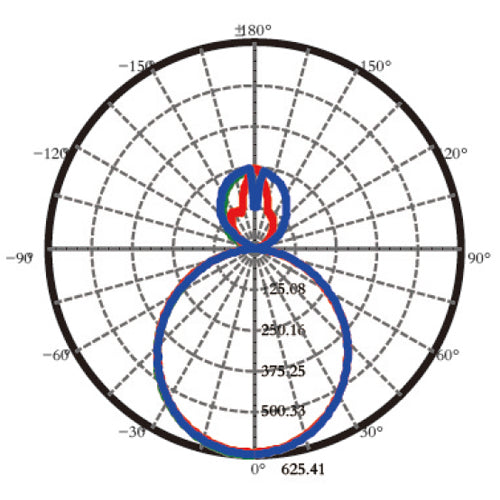

Light Distribution | Up25%-Down75% |
CRI |
90 |
Electronic Transformer |
O-OnOff/ DIM1-1~10V/ DIM2-DALI |
Surface color |
Silver/ White/ Black |

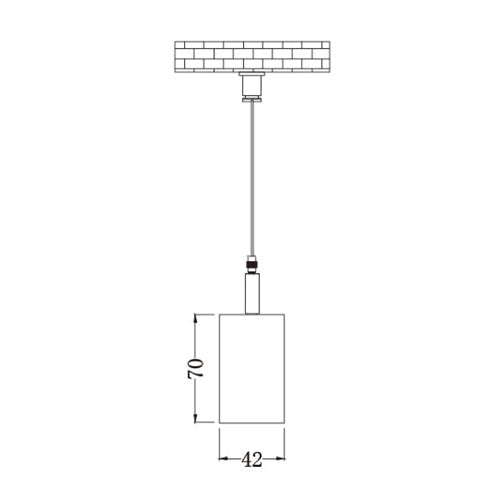

Dimension |
W42 mm*H70 mm*L1146 mm/ (L1496mm or Customized Length) |
