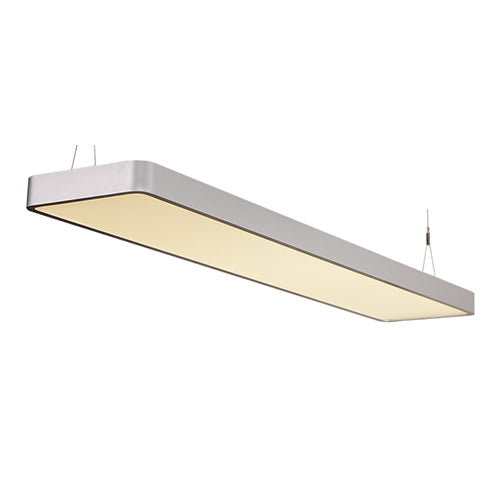

Quadro Suspended QU22045-40R-SUD
Available for suspended application – down-up, and symmetric light effect.
Luminaire body from an extruded aluminum profile; no visible screws; designed for either individual lights or continuous lighting systems; surface color in silver or powder-coated in white; surface mounted or suspended luminaire with 1500mm cable suspension; with integrated tool-less suspension height adjustment; incl. transparent 1500mm power feed cable; Micro Prismatic Polycarbonate diffuser for low glare; energy-efficient LEDs with very good color rendering; available in the light colors 3000K and 4000K; CRI ≥ 90; the LEDs lifetime 50000 hours; the degree of protection IP 20; optional electronic transformer, on/off, 1-10V dimmable or DALI control.
Specification
Model Number |
QU22045-40R-SUD |
System Power | 50W-3000K 3890lm/ 4000K 4100lm |
Optic Cover | Micro Prismatic Cover |

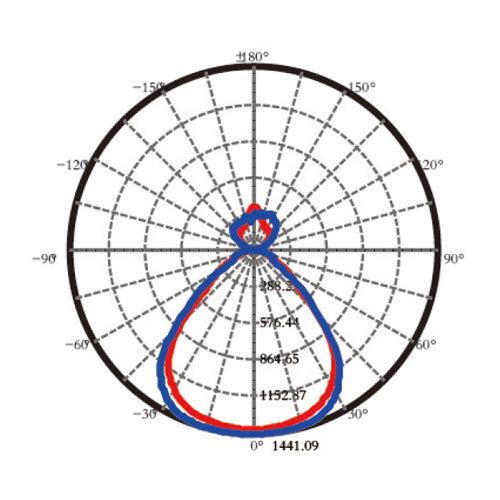

Light Distribution | Up20%-Down80% |
CRI |
90 |
Electronic Transformer |
O-OnOff/ DIM1-1~10V/ DIM2-DALI |
Surface color |
Silver/ White/ Black |

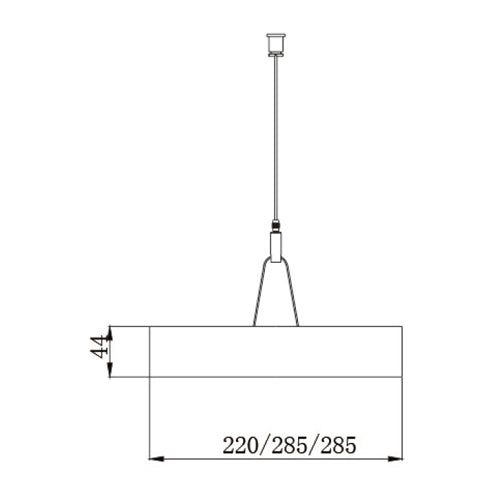

Dimension | W220 mm*H45 mm*L1155 mm |
